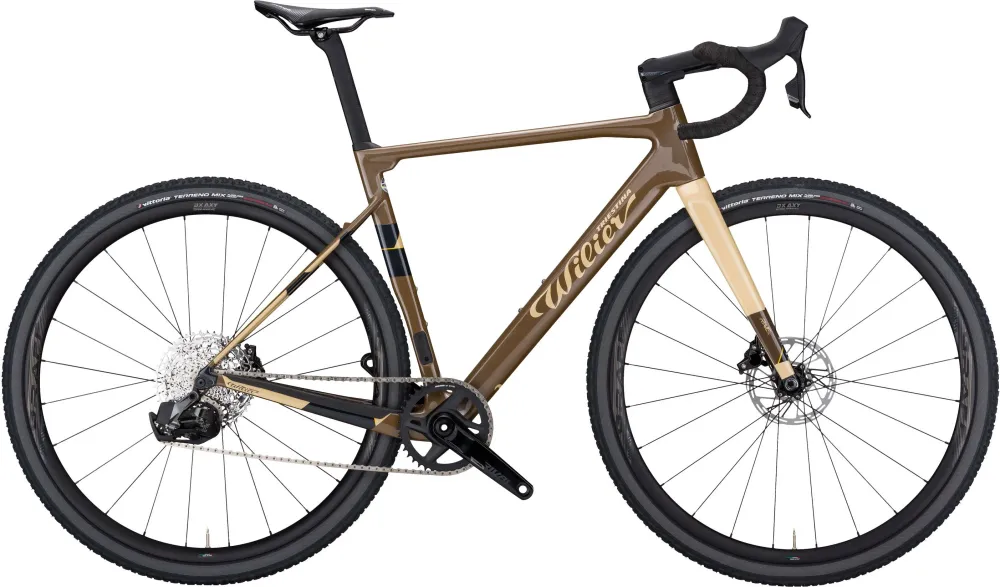

Rave SL is the second step towards a new horizon. A genesis common to the Rave SLR project. The competition geometries thus revive in a bicycle equipped with a double soul: Strada and Gravel. Technical details with a single goal: to put cyclists and cyclists who love pedaling on each ground with a single bicycle without taking too seriously.
Geometries and design derive from the SLR platform and meet a new subject. The carbon fiber frame is equipped with a different lamination where the substance changes, not the shape. For the same Size, The SL rave frame weighs only 140 gr more than the multidencrated Rave SLR.
Scalable technology combined with a skilful processing of carbon fiber replies the SL philosophy of Wilier which becomes a common denominator between Rave SL, SL and 0 SL.
Specific
Chassis: Rave SL – Carbon Monocoque NHU -MOD + High Impact Strenght
Fork: Rave SL – Carbon Monocoque NHU -MOD + High Impact Strenght
Handlebar: Ritchey h-bar road cmp ergomax
Handlebar attack: Coat of arms S
Steering series: WILIER Custom Bearings Superslim
Gearbox leve: Shimano grx 1×12 rx-6100
Brakes: Shimano grx br-rx600
Rotor: Shimano Center Lock SM-RT70 160 mm / 160 mm
Gruppo: Shimano grx 1×12
Change: Shimano GRX RD-RX822 GS
Char: Shimano GRX FC-RX610-1 40T
Central movement: Miche BB Pressfit 86.5×41
Cassette: Shimano CS-M7100-12 10-45T
Chain: Shimano deore cn-m6100 12s
Wheels: Miche Graff XL
Covers: Victory land dry folding 700×40
Saddle: Prologue dimension agx
Bra: Streamlined custom Made -15 mm/0 mm
Pin: Thru Axle 12×122 Front – 12×168 Rear
Chassis weight: 1090 g +/- 5%
Fork: 415 g +/- 5%
*The manufacturer reserves the right to change the information on the website without notice, including specifications, models, colors and materials.
*The images are for purely indicative purposes and may not correspond to the description of the product.
Geometries
| XS | S | M | L | XL | XXL | |
|---|---|---|---|---|---|---|
| C/c (cm) | 43.2 | 46.2 | 48.2 | 50.2 | 52.2 | 54.2 |
| L (cm) | 51 | 52.7 | 54.5 | 56.1 | 57.9 | 59.7 |
| H (cm) | 45 | 48 | 50 | 52 | 54 | 56 |
| A (°) | 75 | 74.5 | 74 | 73.5 | 73 | 72.5 |
| L1 (cm) | 42.1 | 42.2 | 42.3 | 42.3 | 42.5 | 42.7 |
| H1 (cm) | 9.8 | 11.8 | 13.4 | 15.4 | 17.2 | 18.9 |
| A1 (°) | 70 | 70 | 71 | 71 | 71.5 | 72 |
| Reach (mm) | 370 | 377 | 384 | 391 | 398 | 405 |
| Stack (mm) | 513 | 532 | 551 | 570 | 589 | 608 |
| Wheelbase (mm) | 997 | 1012 | 1017 | 1031 | 1041 | 1051 |
